Experiment - 35 :- Practice on Add-On Cards, Cables, and Connectors (Identify I/O Connectors)

 Aim :- Experiment for Practice on Add-On Cards, Cables, and Connectors (Identify I/O Connectors)

understanding and identifying various add-on cards, cables, and connectors used in modern computer systems. Additionally, you will explore I/O (Input/Output) connectors, which are crucial for connecting external devices like printers, monitors, storage devices, and networking equipment.

Objectives of the Experiment:

1. Understand the purpose of add-on cards.
2. Learn about common cables and connectors used for I/O communication.
3. Identify different types of I/O connectors and their functions.
4. Explore the physical installation and troubleshooting of add-on cards.

Materials Required:

• Add-on cards (e.g., Network Interface Cards (NIC), Graphics Cards, Sound Cards, USB expansion cards)
• Cables (e.g., SATA cables, VGA/DVI cables, USB cables, HDMI, Ethernet cables)
• Connectors (e.g., HDMI, VGA, USB-A, USB-C, Ethernet RJ45, audio jacks, DisplayPort)
• A computer with an open PCIe slot (for practicing installation of add-on cards)

---

Section 1: Understanding Add-on Cards

1.1 Types of Add-on Cards

Add-on cards are additional components that can be installed on a computer's motherboard to extend its functionality. The most common types include:

• Graphics Card (GPU): Used to render images and videos, providing visual output to monitors.
• Network Interface Card (NIC): Enables wired or wireless internet connectivity.
• Sound Card: Processes audio signals for speakers, microphones, or headphones.
• USB Expansion Card: Adds extra USB ports to the system for connecting external devices.
• Storage Controller Cards (SATA, RAID): Controls the communication between the computer and storage devices like hard drives or SSDs.

1.2 Installing an Add-on Card

1. Power off the system and unplug it.
2. Open the case of the computer.
3. Locate the PCIe (Peripheral Component Interconnect Express) slots on the motherboard. These are long slots where add-on cards like graphics or network cards are installed.
4. Insert the card firmly into the PCIe slot and secure it with a screw to prevent movement.
5. Connect the necessary cables (e.g., for graphics card, you may need a VGA, HDMI, or DisplayPort cable).
6. Power on the system, and the device should be automatically recognized by the operating system (if drivers are installed or available).

Section 2: Identifying I/O Connectors

2.1 Common I/O Connectors

I/O connectors are used to connect external devices to the computer. These connectors can be categorized based on their type of communication (e.g., video, audio, data transfer, networking).

2.2 Types of I/O Connectors and Their Functions

1. USB Connectors:




   • USB-A: The standard rectangular USB connector used for connecting various devices such as keyboards, mice, and printers.
   • USB-C: A newer, reversible connector that supports high-speed data transfer and charging (used for phones, laptops, and other modern devices).
   • USB-B: Typically used for printers and some external storage devices.

2. Ethernet (RJ45) Connector:


   • Purpose: Used for networking, allowing the connection of computers to a network (LAN) or the internet.
   • Description: The Ethernet cable is typically twisted pair and has an 8-pin connector (RJ45).

3. VGA (Video Graphics Array) Connector:




   • Purpose: An older connector used for connecting monitors to the computer for video output.
   • Description: A 15-pin connector, usually blue in color.

4. HDMI (High-Definition Multimedia Interface) Connector:




   • Purpose: Used for transmitting high-definition video and audio between a computer and a monitor, TV, or other media devices.
   • Description: HDMI connectors come in various sizes (standard, mini, micro) and support digital video and audio.

5. DisplayPort:




   • Purpose: A high-performance video and audio interface that is often used for monitors and other high-definition displays.
   • Description: A smaller, thinner connector that supports higher resolutions and refresh rates than VGA or HDMI.

6. Audio Connectors:




   • 3.5mm Jack: Used for headphones, speakers, and microphones.
   • RCA Connectors: Often used for audio and video output to older devices like TVs and stereo systems.

7. SATA (Serial ATA) Connector:




   • Purpose: Used to connect storage devices like hard drives or SSDs to the motherboard.
   • Description: A small L-shaped connector that transfers data at high speeds.

2.3 Visual Diagram of Common Connectors

Here is a diagram that shows the most commonly used I/O connectors:

Section 3: Cable Types for Add-on Cards and I/O Devices

3.1 Common Cables and Their Usage

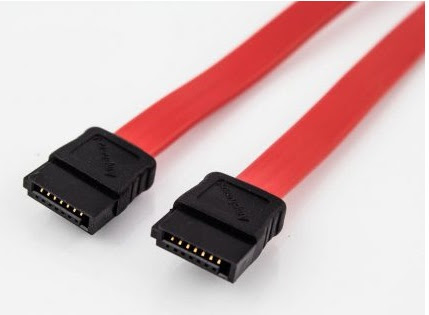

• SATA Cable: Used to connect storage devices (HDD, SSD) to the motherboard.
• HDMI Cable: For video and audio output to displays.
• VGA Cable: For video output to older monitors.
• Ethernet Cable: Used to connect computers and devices to a network.
• USB Cables: Used to connect various peripheral devices like printers, keyboards, and external drives.
• Power Cables: Used to supply power to the computer, add-on cards, and external devices.

3.2 Connecting Cables to Add-on Cards

1. Graphics Card: Connect a VGA, HDMI, or DisplayPort cable to the card's output port and then to the monitor.
2. Network Card (NIC): Connect an Ethernet cable to the card’s RJ45 port and plug the other end into a router or switch for internet access.
3. USB Expansion Card: Connect external devices using a USB-A or USB-C cable to the expansion card's USB ports.

---

Conclusion and Troubleshooting

• Add-on Card Installation: After installing the card, check if the device is recognized in the system’s Device Manager (Windows) or lspci (Linux).
• I/O Connector Identification: Understand the functions and differences between connectors such as USB, HDMI, VGA, Ethernet, and Audio jacks.
• Cable Connections: Ensure that cables are securely connected to their respective ports and properly seated to avoid issues with communication.

By completing this experiment, you will become familiar with the types of add-on cards, cables, and I/O connectors, as well as how to install and troubleshoot them in a system.

Experiment-34 :- PRACTICE ON SEETING IRQ, DMA, Memory Address, IO address, Resource Conflict, Plug & Play Concept.



1. Setting IRQ (Interrupt Request)

What is IRQ? IRQs are used by hardware devices to interrupt the CPU in order to gain its attention to perform an operation. Each device in the system uses a specific IRQ number.

Steps for practical exercise:

• Identify IRQ conflicts: In older systems (especially on BIOS-based computers), IRQs were manually assigned to hardware devices. In modern systems (e.g., using Windows), IRQs are typically managed by the operating system. To check IRQ usage, go to:

  • Windows: Device Manager > View > Resources by Type > Interrupt Request (IRQ).
  • Linux: Use cat /proc/interrupts or dmesg to view IRQ allocations.

• Set IRQ Manually (on older systems): If you have an old system or are working with hardware that does not use Plug and Play (PnP), you might need to manually configure IRQs in the BIOS or jumper settings on devices. To manually set an IRQ:

  1. Enter BIOS during system startup.
  2. Navigate to the 'Integrated Peripherals' or 'Devices' section.
  3. Manually assign IRQ numbers to devices (e.g., sound cards, serial ports, etc.).

• Troubleshoot IRQ conflicts:

  • If two devices share the same IRQ, they will cause a conflict. For instance, a sound card and network adapter using IRQ 5 might prevent either device from functioning.
  • To resolve, change the IRQ setting of one of the devices via BIOS or Device Manager.

2. Setting DMA (Direct Memory Access)

What is DMA? DMA allows peripherals to directly transfer data to/from memory without CPU intervention, speeding up operations like disk access or audio processing.

Steps for practical exercise:

• Identify DMA Channels: Use the following methods to check DMA usage:
  • Windows: Device Manager > View > Resources by Type > Direct Memory Access (DMA).
  • Linux: Check DMA status via dmesg or cat /proc/ioports.
• Set DMA Channel Manually (on older systems): Some older systems required manual configuration of DMA channels, typically done in BIOS or via jumpers on the device.
  1. Check the DMA channel usage in the system.
  2. Change the DMA channel of one of the conflicting devices.
• Troubleshoot DMA Conflicts:
  • DMA channels might conflict if two devices are trying to use the same channel. Changing the DMA channel of one device usually resolves the conflict.

3. Memory Address Configuration

What is a Memory Address? Memory addresses refer to specific locations in the system's RAM or device memory that hardware or software uses for data storage and retrieval.

Steps for practical exercise:

• View Memory Map:
  • Windows: Use System Information > Hardware Resources > Memory.
  • Linux: View memory map using cat /proc/iomem to see device memory allocations.
• Assign Memory Address (for legacy hardware): Older hardware like ISA cards often required manual configuration of memory addresses. In modern systems, memory addresses are typically assigned automatically.
  • You might need to adjust the memory address using the device’s BIOS settings, jumpers, or configuration files.
• Troubleshoot Memory Conflicts: If two devices are trying to use the same memory range, they can conflict, causing system instability. Manual configuration in BIOS or the operating system’s resource management tools can resolve such conflicts.

4. I/O Address Configuration

What is I/O Address? I/O addresses are locations in the system’s I/O space where peripherals such as keyboards, mice, printers, and network cards communicate with the CPU.

Steps for practical exercise:

• View I/O Port Usage:

  • Windows: Device Manager > View > Resources by Type > I/O Port.
  • Linux: Use cat /proc/ioports to check I/O addresses.

• Configure I/O Addresses: Similar to memory and IRQ configuration, older hardware devices may need manual configuration of I/O addresses. In BIOS, you might find settings for I/O address ranges that you can modify.

• Troubleshoot I/O Address Conflicts: I/O conflicts happen when two devices try to use the same I/O range. Adjust the I/O address of one of the conflicting devices to solve this issue.

5. Resource Conflict Resolution

What is a Resource Conflict? A resource conflict happens when two or more devices attempt to use the same resources, such as IRQs, DMA channels, memory addresses, or I/O addresses.

Steps for practical exercise:

• Identify Resource Conflicts: Use the following methods to identify conflicts:
  • Windows: Device Manager > Look for devices with a yellow triangle indicating a conflict.
  • Linux: Use dmesg to view logs of hardware conflicts.
• Resolve Conflicts:
  • IRQ Conflicts: Change one device’s IRQ in BIOS or through the operating system’s settings.
  • DMA Conflicts: Change the DMA channel in BIOS or via operating system settings.
  • I/O Conflicts: Reassign I/O addresses in the BIOS or via OS tools.
  • Memory Conflicts: Reassign memory regions if the system or device allows for manual configuration.

6. Plug and Play (PnP) Concept

What is Plug and Play? PnP is a technology that allows a computer to automatically detect and configure hardware devices when they are added to the system. PnP systems handle IRQs, DMA, memory addresses, and I/O configurations automatically, removing the need for manual configuration.

Steps for practical exercise:

• Enable PnP in BIOS:
  1. Enter BIOS during boot.
  2. Look for an option like “Plug and Play OS” and set it to "Enabled" (this allows the operating system to manage device configuration).
• Add a New Device (PnP):
  1. Connect a new device (e.g., USB device, PCI card).
  2. The system should automatically detect and configure the device without manual intervention.
• Troubleshoot PnP Devices: If PnP fails (for instance, if the device doesn’t appear in Device Manager or doesn’t work), you can:
  • Check device drivers.
  • Reboot the system.
  • Manually configure resources if necessary.

Conclusion:

This practical covers how to set IRQs, DMA, memory and I/O addresses, troubleshoot conflicts, and leverage the Plug and Play concept in modern systems. While PnP automates most tasks today, understanding manual configuration is crucial for troubleshooting and working with legacy systems or specialized hardware.

Experiment- 31:- Practical techniques for UPS circuit tracing and fault finding

Aim :-  UPS circuit tracing and fault finding

UPS circuit tracing and fault finding are essential for troubleshooting and maintaining uninterrupted power systems. Here's a step-by-step guide for practicing UPS circuit tracing and fault finding:

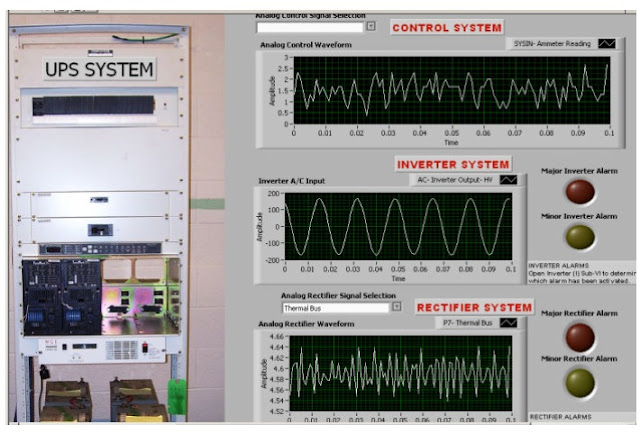

1. Understanding the UPS System Layout

Before starting, familiarize yourself with the UPS system. Key components include:

• Rectifier: Converts AC to DC to charge the battery.
• Inverter: Converts DC back to AC to power connected loads.
• Battery: Stores energy for use during power failure.
• Transfer Switch: Switches between utility power and battery/inverter power.
• Control Board: Manages the operation and safety of the UPS.

2. Initial Checks

• Visual Inspection: Look for obvious signs of damage, wear, or overheating (burnt components, scorched PCB traces, damaged cables).
• Check Connections: Ensure all connections are tight and intact, including input power and output connections.

3. Safety First

Before opening a UPS for fault finding:

• Turn off power and unplug the unit.
• Discharge capacitors as they can store high voltage even when the UPS is powered off.
• Wear appropriate personal protective equipment (PPE).

4. Use of Multimeter

A digital multimeter (DMM) is essential for circuit tracing and fault finding. You’ll use it to measure:

• DC and AC voltage: Measure input and output voltages at various points.
• Continuity: Check for open circuits or broken connections.
• Resistance: For testing components like fuses and resistors.

Common Voltage Measurements:

• AC Input Voltage: Verify the UPS is receiving AC input from the mains.
• DC Bus Voltage: Measure DC voltage across the battery terminals.
• Inverter Output Voltage: Ensure the inverter is producing the correct AC output.

5. Troubleshooting Steps

Step 1: Power-On Self-Test (POST)

• Failure to Power On: If the UPS doesn’t power on, check:
  • Input AC power (AC circuit breaker and fuses).
  • Control board or relay failure (replace or inspect).
  • Overvoltage or undervoltage conditions.

Step 2: Battery Check

• Battery Failure Symptoms: If the UPS works on AC but not during a power failure, it could be a battery problem.
  • Measure DC Voltage: A low battery voltage indicates a problem.
  • Check Battery Health: If the battery voltage is too low or fluctuating, the battery may need replacement.
  • Test Battery Load: Apply a load to the battery and check the voltage drop.

Step 3: Rectifier and Inverter Testing

• Rectifier Issue:
  • Measure the DC output voltage from the rectifier.
  • If there's no DC voltage, check for issues with rectifier diodes, fuses, or filters.
• Inverter Issue:
  • If there is DC but no AC output, check the inverter.
  • Measure the AC output from the inverter. No AC could indicate a problem with the inverter circuit or control board.

Step 4: Transfer Switch and Control Board

• Transfer Switch Failure: If the UPS switches off when power is lost, the transfer switch could be faulty.
  • Test the switch operation (it should connect the inverter to the load in the event of a power failure).
• Control Board Fault: A malfunctioning control board can lead to improper functioning of other components.
  • Check for visible damage or burned components on the board.
  • Inspect relays and optocouplers.

Step 5: Overload Protection and Circuit Breakers

• Overload or Overcurrent Protection: If the UPS shuts down or goes into bypass mode, check the load for overdraw and the circuit breakers.
  • Verify the power rating of the connected load is within the UPS capacity.
  • Check for tripped breakers and reset them if necessary.

Step 6: Fuses and Circuit Protection

• Inspect for blown fuses, especially in the rectifier or inverter section.
• Test fuses: If a fuse is blown, replace it with a correct specification fuse. Check for short circuits that caused the fuse to blow.

6. Component-Level Troubleshooting

• Capacitors: Leaky or damaged capacitors can cause power issues. Use an ESR meter to check capacitor health.
• Transistors or Diodes: Measure diodes in the rectifier/inverter stage using a diode test function on the multimeter.
• Relays and Switches: Check for faulty relay contacts or switches that could affect power delivery.

7. Software and Diagnostics

• If your UPS has a smart interface or diagnostic software, use it to run self-diagnostics and view event logs to identify faults.
• Firmware Updates: Sometimes, firmware issues can affect performance. Check for any available updates from the manufacturer.

8. Common UPS Faults and Their Fixes

• UPS Does Not Start: No input power or faulty control board.
• UPS Powers On but No Output: Inverter failure, no battery, or overload condition.
• UPS Shuts Down During Operation: Overload, overheating, or failing battery.
• UPS Outputs Low Voltage: Rectifier failure or incorrect battery voltage.

9. Record Keeping

• Keep records of all tests and any components replaced. This helps in tracking recurring issues and performing preventative maintenance.

By following these steps and using the right tools, you can diagnose and fix a variety of UPS faults.

PRACTICAL- 33 :- Installation And Configuration Of Different Types Of MODEM

 AIM :- Installation And Configuration Of Different Types Of MODEM

1. DSL Modem Installation & Configuration

DSL (Digital Subscriber Line) modems are used to connect to the internet via a phone line.

Steps for Installation:

1. Unbox the DSL modem and verify all the components are included (modem, power adapter, Ethernet cable, phone line).
2. Connect the phone line from the wall socket to the DSL port on the modem.
3. Connect the modem to the power supply using the power adapter.
4. Connect the modem to your computer via an Ethernet cable (plug one end into the modem and the other end into the computer's Ethernet port).
5. Turn on the modem. Wait for the modem's status lights to stabilize (usually, the "Power" and "DSL" lights should be solid).

Configuration:

1. Open a browser and enter the IP address of the modem (often 192.168.1.1 or 192.168.0.1).
2. Log in to the modem using the default username and password (often something like "admin" for both fields).
3. In the setup menu, enter your DSL username and password (provided by your ISP).
4. Save settings and reboot the modem if prompted.
5. After rebooting, the connection should be established. The "DSL" light will typically turn solid green.

---

2. Cable Modem Installation & Configuration

Cable modems are used for internet access via cable TV lines.

Steps for Installation:

1. Unbox the modem and make sure all components are included (modem, power adapter, coaxial cable, Ethernet cable).
2. Connect the coaxial cable from the wall outlet to the cable port on the modem.
3. Connect the power adapter to the modem and plug it into a power outlet.
4. Use an Ethernet cable to connect the modem to your computer or router (if using a router for wireless access).
5. Turn on the modem and wait for the status lights to stabilize (usually "Power", "Online", and "Ethernet" should be green).

Configuration:

1. Open a browser and go to the modem’s IP address (typically 192.168.100.1).
2. Log in with the default admin credentials (check the modem manual for these).
3. Configure the network settings if necessary (some modems may auto-detect settings).
4. If connecting through a router, ensure that the router is correctly configured with an IP address.
5. The modem should be ready to use once the connection lights stabilize.

---

3. Fiber Optic Modem (ONT) Installation & Configuration

Fiber modems (Optical Network Terminal - ONT) provide high-speed internet via fiber-optic cables.

Steps for Installation:

1. Unbox the ONT modem and ensure all components are included (ONT, power adapter, Ethernet cable).
2. Connect the fiber optic cable from the wall (or optical network) to the ONT device.
3. Power the ONT device using the power adapter.
4. Connect the ONT to your computer or router using an Ethernet cable.
5. Turn on the ONT and wait for the status lights to become stable (check for a solid "Power" and "Data" or "Fiber" light).

Configuration:

1. Access the ONT’s web interface by entering its IP address (often 192.168.100.1 or a variant).
2. Log in using the default credentials (often “admin” for both).
3. If required, enter the credentials provided by your ISP for authentication.
4. Save settings and reboot the ONT if needed.
5. Once the ONT establishes a connection, the status lights should be stable.

---

4. Mobile Hotspot Modem Installation & Configuration

Mobile modems (also known as MiFi) allow internet access through cellular networks.

Steps for Installation:

1. Unbox the mobile hotspot and ensure it includes the device, SIM card, and charger.
2. Insert the SIM card into the hotspot (ensure it’s an active SIM from your cellular provider).
3. Charge the hotspot device using the provided charger.
4. Power on the hotspot and wait for it to boot up.
5. Once powered, you’ll see the Wi-Fi network name (SSID) and password on the device screen or its manual.

Configuration:

1. Connect your computer or mobile device to the Wi-Fi network (SSID) of the hotspot.
2. Access the hotspot’s admin page by typing its IP address (often 192.168.1.1 or 192.168.0.1) into a web browser.
3. Log in with the default username and password (provided in the user manual).
4. From here, you can change settings such as the Wi-Fi password, network name (SSID), or configure advanced features like port forwarding.

---

5. Wi-Fi Router with Modem Setup

Some modems come with integrated Wi-Fi routers. If you are using a modem-router combo, follow these steps:

Steps for Installation:

1. Unbox the modem-router combo and verify that all necessary components (power adapter, Ethernet cables) are included.
2. Connect the phone or cable line (depending on the type of service) to the modem-router combo’s internet port.
3. Plug in the power adapter and connect the device to a power outlet.
4. Connect your computer or other device to the modem-router combo via Wi-Fi or Ethernet cable.
5. Turn on the device and wait for the Wi-Fi signal to become available.

Configuration:

1. Access the device's settings by typing the default IP address (usually 192.168.0.1 or 192.168.1.1) into a browser.
2. Log in with the admin credentials (often "admin" for both username and password).
3. Configure Wi-Fi settings, such as SSID (network name), Wi-Fi password, and encryption settings (WPA2 recommended).
4. Set up port forwarding or firewall rules if necessary.
5. Save the settings and reboot the device if prompted.

Experiment-30 :- Testing an Uninterruptible Power Supply (UPS) for backup Time

AIM :-  Testing an Uninterruptible Power Supply (UPS) for backup Time

Equipment Needed:

1. UPS Unit: The unit you wish to test.
2. Load Bank: A resistive load bank or electronic load capable of drawing a specified amount of current.
3. Multimeter: For measuring voltage and current.
4. Timer: To accurately measure the backup time.
5. Temperature Monitoring Equipment: Optional, to monitor the UPS temperature during testing.
6. Data Logger: Optional, for recording voltage, current, and time.

Steps for Testing Backup Time:

1. Preparation

• Review Specifications: Check the UPS specifications for the rated backup time at a specified load.
• Fully Charge the UPS: Ensure the UPS is fully charged according to the manufacturer's recommendations, typically for at least 24 hours.

2. Setup

• Connect the Load: Connect the load bank to the UPS output. The load should be set to a specific percentage of the UPS's rated capacity (e.g., 50%, 75%, or 100%).
• Measure Initial Conditions: Use a multimeter to measure and record the voltage and current before starting the test.

3. Conduct the Test

• Start the Load: Turn on the load bank to draw the specified load from the UPS.
• Start the Timer: Begin timing as soon as the load is applied.
• Monitor Performance: Continuously monitor the output voltage and current during the test. Make note of any fluctuations or anomalies.
• Temperature Check: Optionally, monitor the UPS temperature to ensure it remains within safe operating limits.

4. End of Backup Time

• Monitor for Low Battery Warning: Keep an eye on the UPS for any alerts or alarms indicating low battery status.
• Record Time: Once the UPS shuts down or the output voltage drops below the acceptable level (typically around 80-90% of nominal voltage), stop the timer and record the total backup time.
• Check Voltage: Measure the output voltage at the moment of shutdown.

5. Post-Test Analysis

• Compare Results: Compare the recorded backup time with the specifications provided by the manufacturer.
• Document Findings: Record all measurements, observations, and any discrepancies noted during the test.
• Evaluate Performance: If the backup time is significantly lower than specified, further investigation may be necessary (e.g., battery health, load configuration).

6. Safety Precautions

• Ensure all safety protocols are followed while conducting the test.
• Be cautious of high currents and voltages during the testing process.
• Use appropriate personal protective equipment (PPE).

Conclusion

Testing the backup time of a UPS is crucial to ensure reliability during power outages. Documenting the process and results helps in evaluating the performance of the UPS and planning for maintenance or replacements as needed. If the UPS does not meet specifications, consider consulting the manufacturer or a qualified technician for further evaluation.

Experiment - 29 :- To identifying the status of a UPS (Uninterruptible Power Supply) from its front panel indicators

AIM :- To identifying the status of a UPS (Uninterruptible Power Supply) from its front panel  indicators,

Materials Needed

• UPS unit with front panel indicators
• Load (e.g., computer, lamp, etc.) to connect to the UPS
• Multimeter (optional, for battery voltage testing)

Procedure

1. Initial Setup:

   • Place the UPS in a well-ventilated area.
   • Connect the UPS to a wall outlet.
   • Connect a load (like a computer or lamp) to the UPS output.

2. Powering On the UPS:

   • Turn on the UPS. Observe the power on indicator:
     • Expected Result: A solid green light indicates that the UPS is powered on.

3. Observing Battery Status:

   • After powering on, let the UPS charge for a few hours if necessary.
   • Check the battery status indicator:
     • Expected Result: A solid green light typically means the battery is fully charged. A yellow or red light indicates low charge.

4. Simulating Power Failure:

   • Unplug the UPS from the wall outlet while keeping the load connected.
   • Observe the indicators:
     • Expected Result: The UPS should switch to battery mode, indicated by a change in the power indicator (often still green but may beep).

5. Testing Load Status:

   • While in battery mode, check the load indicator (if available):
     • Expected Result: Ensure the load indicator shows the load level is within limits (typically not in the red zone).

6. Bypass Mode Check:

   • If your UPS supports bypass mode, you can simulate a fault by intentionally overloading the UPS (e.g., by connecting too many devices).
   • Observe the bypass indicator:
     • Expected Result: A yellow light may indicate the UPS is in bypass mode.

7. Fault Condition:

   • If there is a fault (like a battery failure), you may hear an alarm or see a fault indicator light up.
   • Refer to the manual for specific fault codes and their meanings.

8. Testing Alarm Indicators:

   • If applicable, check how the UPS handles alarm conditions (e.g., unplugging a device suddenly or overloading).
   • Observe any visual or audible alarms.

9. Voltage Testing (Optional):

   • Use a multimeter to check the voltage output of the UPS when it's on battery power to confirm it's functioning correctly.

Conclusion

After completing the experiment, summarize your findings based on the indicators observed. You should have a better understanding of how to interpret the UPS front panel indicators and what they signify about the UPS's operational status. Always refer to the user manual for specific details related to your UPS model, as the indicators may vary.
