Experiment-30 :- Testing an Uninterruptible Power Supply (UPS) for backup Time

AIM :-  Testing an Uninterruptible Power Supply (UPS) for backup Time

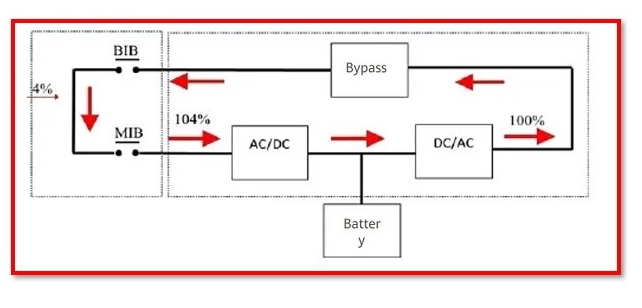

Equipment Needed:

1. UPS Unit: The unit you wish to test.
2. Load Bank: A resistive load bank or electronic load capable of drawing a specified amount of current.
3. Multimeter: For measuring voltage and current.
4. Timer: To accurately measure the backup time.
5. Temperature Monitoring Equipment: Optional, to monitor the UPS temperature during testing.
6. Data Logger: Optional, for recording voltage, current, and time.

Steps for Testing Backup Time:

1. Preparation

• Review Specifications: Check the UPS specifications for the rated backup time at a specified load.
• Fully Charge the UPS: Ensure the UPS is fully charged according to the manufacturer's recommendations, typically for at least 24 hours.

2. Setup

• Connect the Load: Connect the load bank to the UPS output. The load should be set to a specific percentage of the UPS's rated capacity (e.g., 50%, 75%, or 100%).
• Measure Initial Conditions: Use a multimeter to measure and record the voltage and current before starting the test.

3. Conduct the Test

• Start the Load: Turn on the load bank to draw the specified load from the UPS.
• Start the Timer: Begin timing as soon as the load is applied.
• Monitor Performance: Continuously monitor the output voltage and current during the test. Make note of any fluctuations or anomalies.
• Temperature Check: Optionally, monitor the UPS temperature to ensure it remains within safe operating limits.

4. End of Backup Time

• Monitor for Low Battery Warning: Keep an eye on the UPS for any alerts or alarms indicating low battery status.
• Record Time: Once the UPS shuts down or the output voltage drops below the acceptable level (typically around 80-90% of nominal voltage), stop the timer and record the total backup time.
• Check Voltage: Measure the output voltage at the moment of shutdown.

5. Post-Test Analysis

• Compare Results: Compare the recorded backup time with the specifications provided by the manufacturer.
• Document Findings: Record all measurements, observations, and any discrepancies noted during the test.
• Evaluate Performance: If the backup time is significantly lower than specified, further investigation may be necessary (e.g., battery health, load configuration).

6. Safety Precautions

• Ensure all safety protocols are followed while conducting the test.
• Be cautious of high currents and voltages during the testing process.
• Use appropriate personal protective equipment (PPE).

Conclusion

Testing the backup time of a UPS is crucial to ensure reliability during power outages. Documenting the process and results helps in evaluating the performance of the UPS and planning for maintenance or replacements as needed. If the UPS does not meet specifications, consider consulting the manufacturer or a qualified technician for further evaluation.
