Practical -53 :- Familiarization with various Network devices



Aim: Study of following Network Devices in Detail

• Repeater
• Hub
• Switch
• Bridge
• Router
• Gate Way

Apparatus (Software): No software or hardware needed.

Procedure: Following should be done to understand this practical.

LAN DEVICES

NIC Card-

A network interface controller (NIC) card is a computer hardware component that connects a computer to a computer network. it is also known as a network interface card, network adapter, LAN adapter, Ethernet card) is a computer hardware component that connects a computer to a computer network.You can see the NIC card picture given below.



Hub

Hub is a device that is used to connect more than two computers together for data file, resource sharing etc in the network.

Switch

A switch is a telecommunication device that receives a message from any computer/device connected to it and then transmits the message only to the device for which the message was sent. This makes the switch a more intelligent device than a hub (which receives a message and then transmits it to all the other devices on its network). Switch is also known as multiport bridge.

Bridge –

Bridge is similar to Switch. Bridge has less number of connecting ports than switch

WAN DEVICES

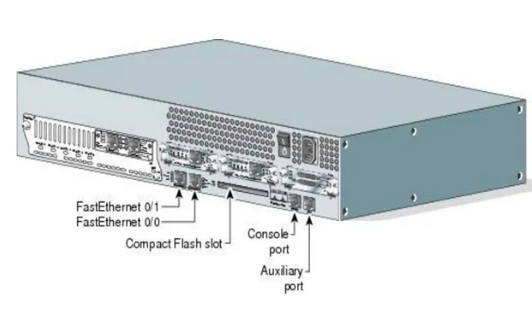

Router

Routers are the physical devices that connect multiple different networks together. As its name tells us that this device defines the route for data packets. Like by which route the data will be forwarded if more than routes are available.



Modem(Wireless/Wired)

Modems are networking devices that convert analog and digital data for computer-to-computer communication. Analog data used on telephone lines and the digital form used on computers. It is Also Known As: modulator demodulator
